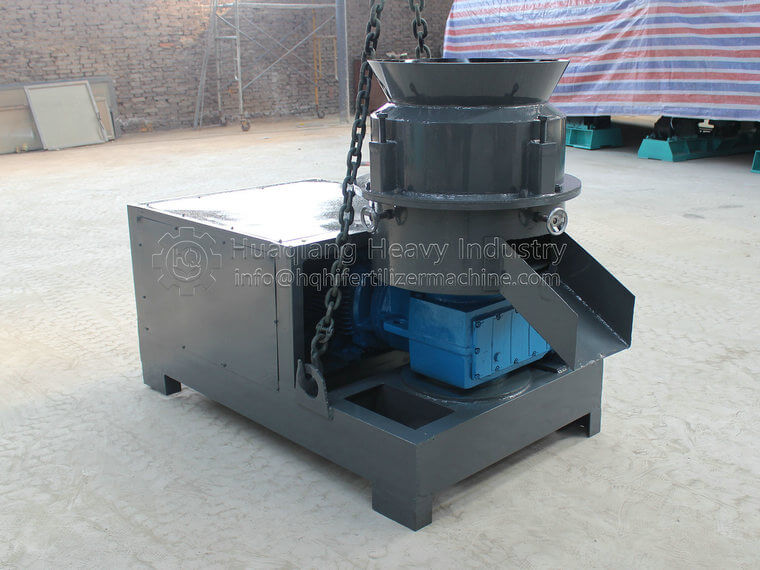

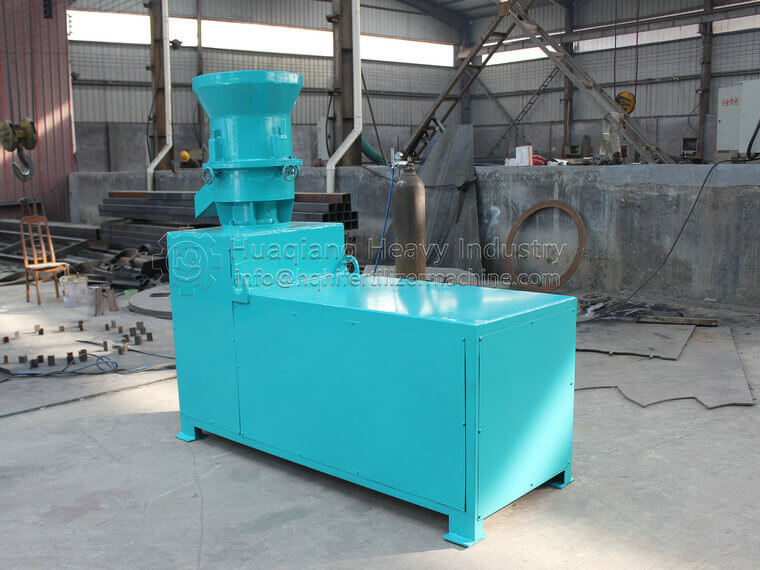

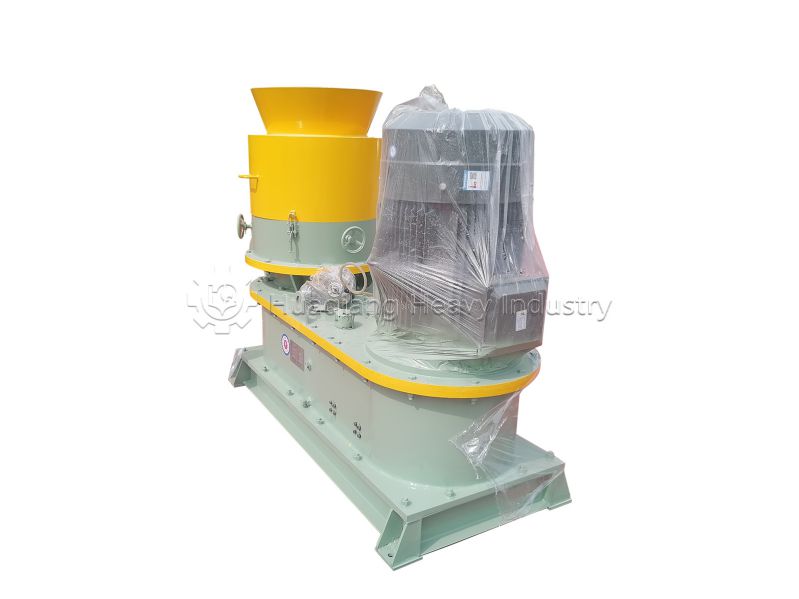

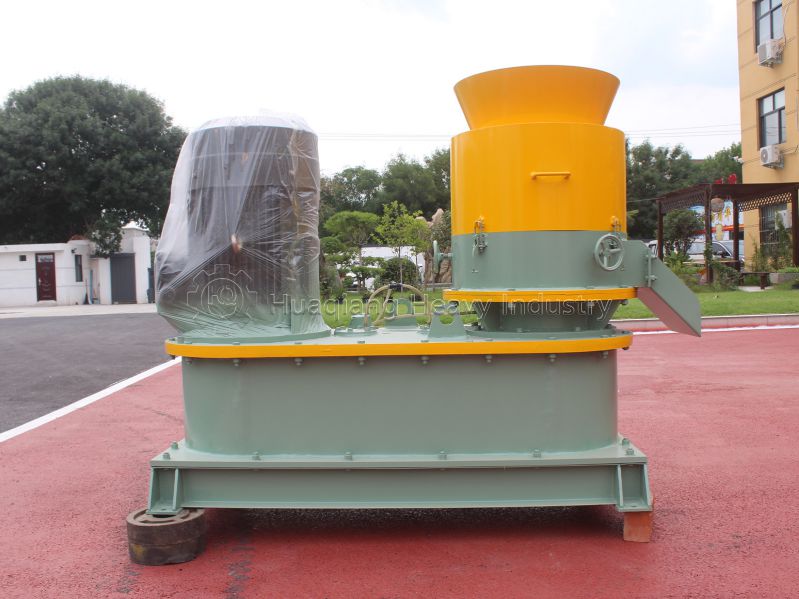

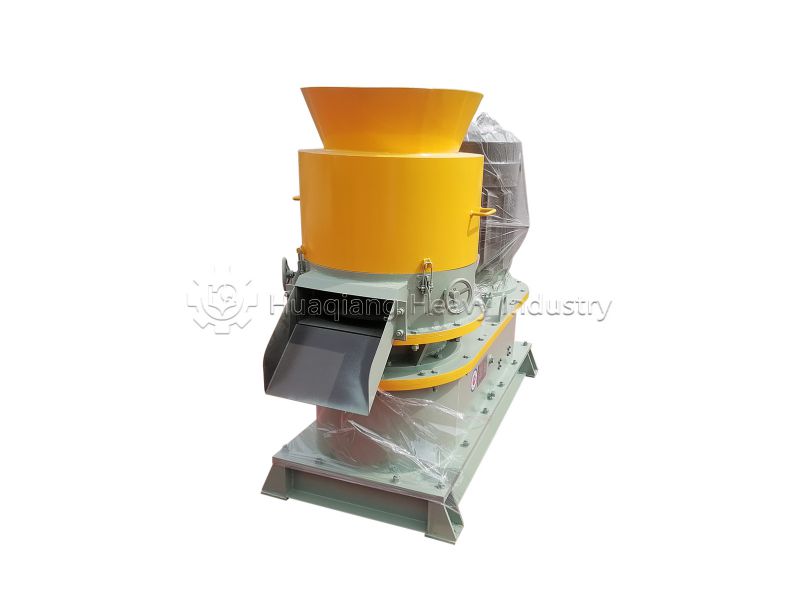

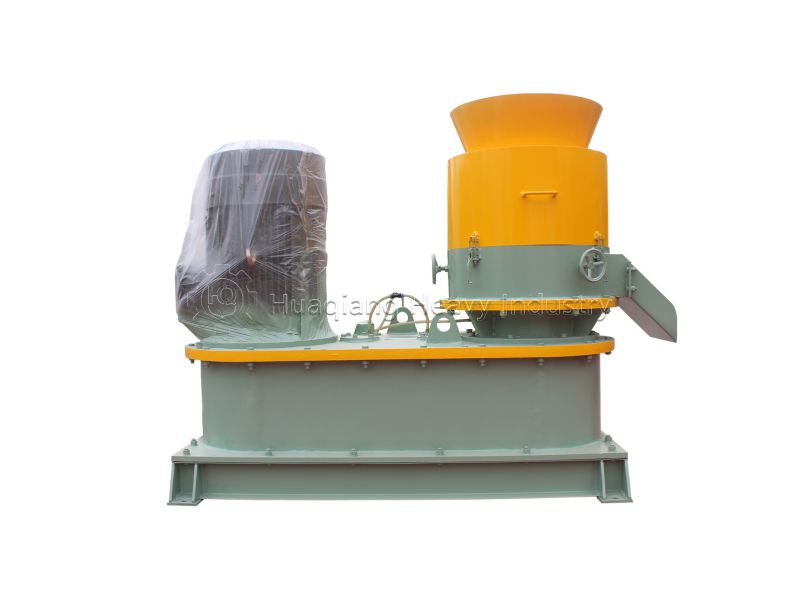

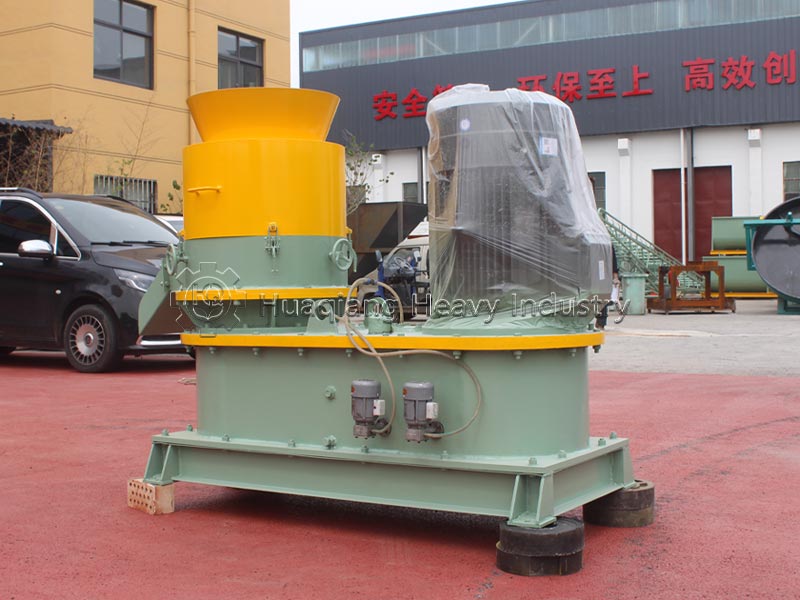

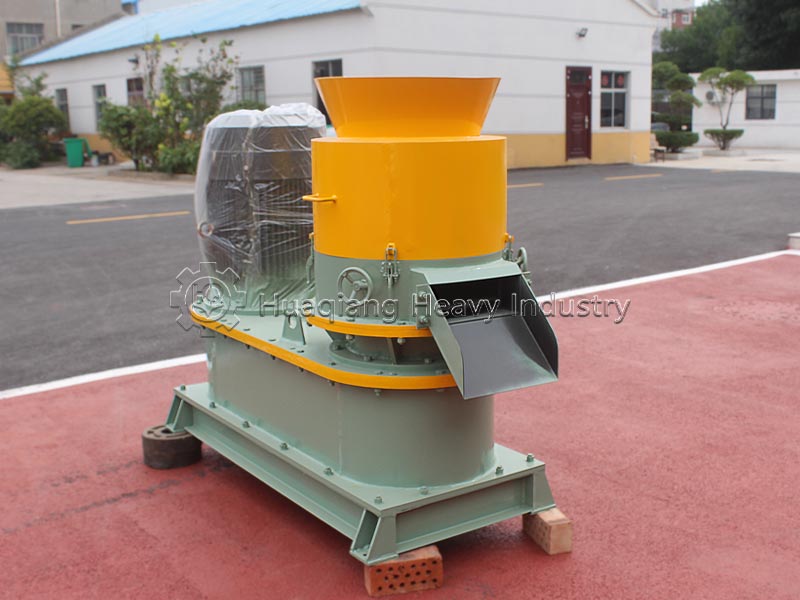

Flat Die Granulator

The multifunctional flat-die granulator is a common used equipment in the production of organic fertilizer. It can produce cylindrical organic fertilizer particles and feed particles. It can also connect polishing equipment, make cylindrical particles t.....





Model: KP-150c/KP-250c





Motor Power: 7.5/11
Share With:
Details
Video
Parameters
Inquiry
Related Products
Details
INTRODUCTION
The flat die granulator machine is the main machine to produce the bio-organic fertilizer.It is the main fertilizer granulator machine in our company.It is a fertilizer machine that has been researched,improved and carefully manufactured by our technicals based on advanced granules at home and abroad.The machine is excellent in processing units.

The flat-die granulator is the latest technology product produced by our factory based on so many years organic fertilizer processing equipment design and production experience. It is commonly used for granulation of various organic fertilizers after fermentation, breaking through the conventional organic granulation process. Before granulation, the raw materials are not dried and crushed. Cylindrical particles can be processed directly, and it can save amount of energy.

ADVANTAGES
1.The produced particles are cylindrical.

2.Organic content can be as high as 100%, which achieves the goal of pure organic granulation.

3.No adhesive is needed during granulation due to the principle that the organic particles can be mosaic with each other to grow bigger in a certain force.

4.The particles are strong, it can be immediately screened after granulation, which can reduce the drying rate and energy consumption.

5.The organic matter does not need to be dried after fermentation , and the moisture content of raw materials can be 20-40%.


Video
Parameters
Model KP-150c KP-250c KP-300c KP-350c KP-400c
Capacity (t/h) 0.08-0.1 0.5-0.7 0.8-1.0 1.1-1.8 1.8-2.5
Granulation Rate(%) >95 >95 >95 >95 >95
Pellets Temperature(℃) <30 <30 <30 <30 <30
Power(kW) 7.5 11 15 18.5 22
